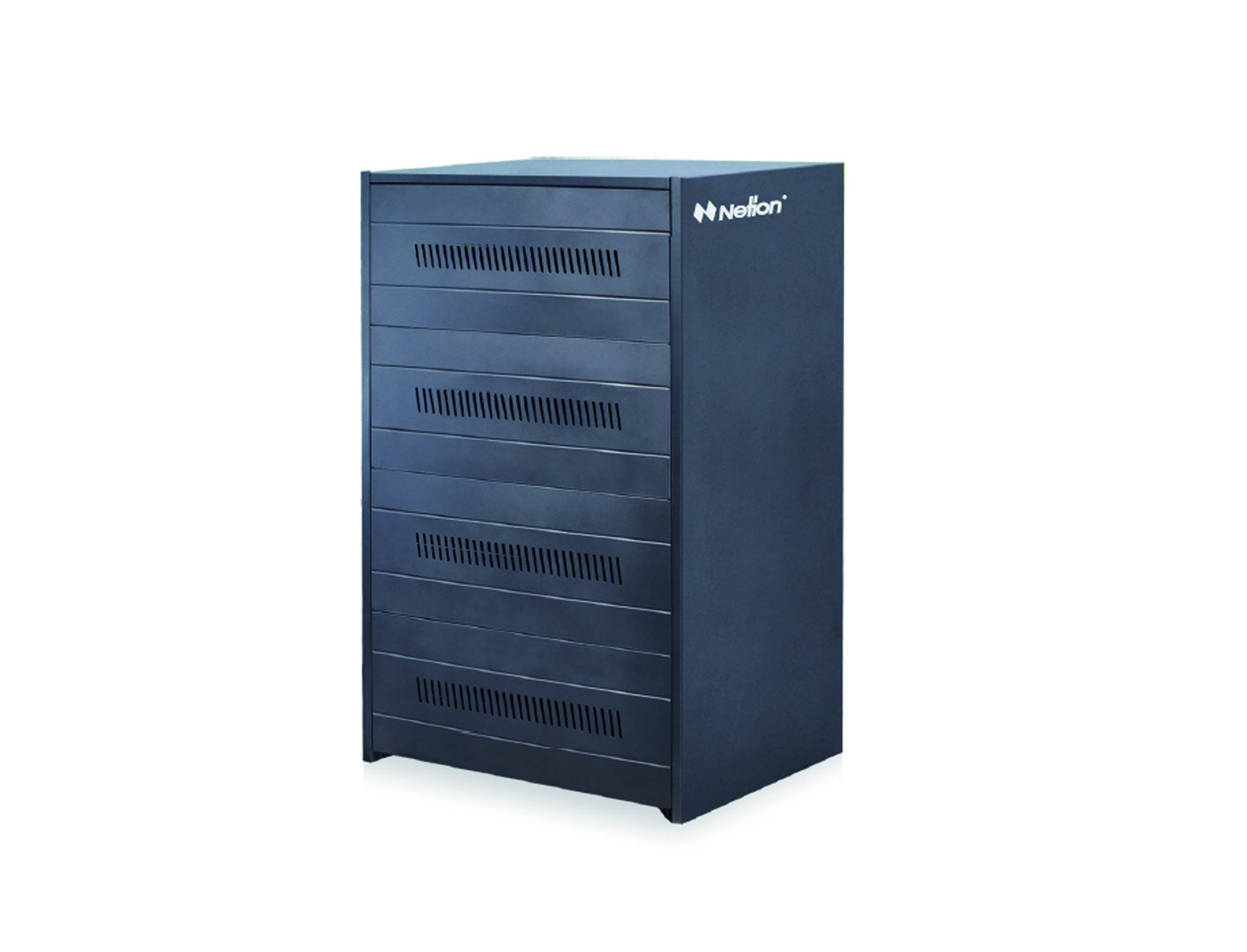

Product profile
The product is made of cold gadolinium steel plate or environmental protection plating plate, with good mechanical performance, large bearing capacity and compact and reasonable structure.
1.The product is made of cold gadolinium steel plate or environmental protection plating plate, with good mechanical performance, large bearing capacity, compact and reasonable structure. Whole cabinet electrostatic spray painting, soft light, wear resistance, corrosion prevention, good fire performance, insulation, durable. Designed to place multiple large or small capacity batteries.
2.Transportation and installation are very convenient.
product name | specifications | External size | QTY of batteries can be held(pc) | number of plies | Communication empty | Standard battery connection | Reference weight | |
(L*W*H)mm | （KG） | |||||||
battery box | C-1B | 284×194×232 | 17AH/24AH/38AH | 3/2/1 | 1 | none | 6 Square | 2kg |
C-1 | 434×210×265 | 17AH/24AH/38AH | 5/3/2 | 1 | 3kg | |||
65AH/100AH | 1 | 1 | ||||||
C-1A | 534×210×232 | 17AH/24AH/38AH | 6/4/3 | 1 | 4kg | |||
C-2 | 413×450×302 | 17AH/24AH/38AH | 10/6/4? | 1 | 7kg | |||
65AH/100AH | 2 | 1 | ||||||
C-3 | 593×450×302 | 17AH/24AH/38AH | 12/9/6 | 1 | 9kg | |||
65AH/100AH | 3 | 1 | ||||||
C-4 | 420×470×615 | 17AH/24AH/38AH | 20/12/8 | 2 | 1P63A | 12kg | ||
65AH/100AH | 4 | 2 | ||||||
C-6 | 595×470×610 | 17AH/24AH/38AH | 24/18/12 | 2 | 17kg | |||
65AH/100AH | 6 | 2 | ||||||
C-8 | 780×470×610 | 17AH/24AH/38AH | 32/24/16 | 2 | 20kg | |||
65AH/100AH | 8 | 2 | ||||||
C-10 | 955×470×610 | 24AH/38AH | 24/20 | 2 | 24kg | |||
65AH/100AH | 10 | 2 | ||||||
C-12 | 780×470×895 | 24AH/38AH | 36/24 | 3 | 30.5kg | |||
65AH/100AH | 12 | 3 | ||||||
C-16 | 780×470×1180 | 24AH/38AH | 48/32 | 4 | 43kg | |||
65AH/100AH | 16 | 4 | ||||||
C-20 | 955×470×1180 | 24AH/38AH | 60/40 | 4 | 47kg | |||
65AH/100AH | 20 | 4 | ||||||
C-24 | 595×890×1180 | 24AH/38AH | 72/48 | 4 | 55kg | |||
65AH/100AH | 24 | 4 | ||||||
C-32 | 780×890×1180 | 65AH/100AH | 32 | 4 | 1P100A | 10 Square | 92kg | |
C-40 | 950×890×1180 | 65AH/100AH | 40 | 4 | 96kg | |||
