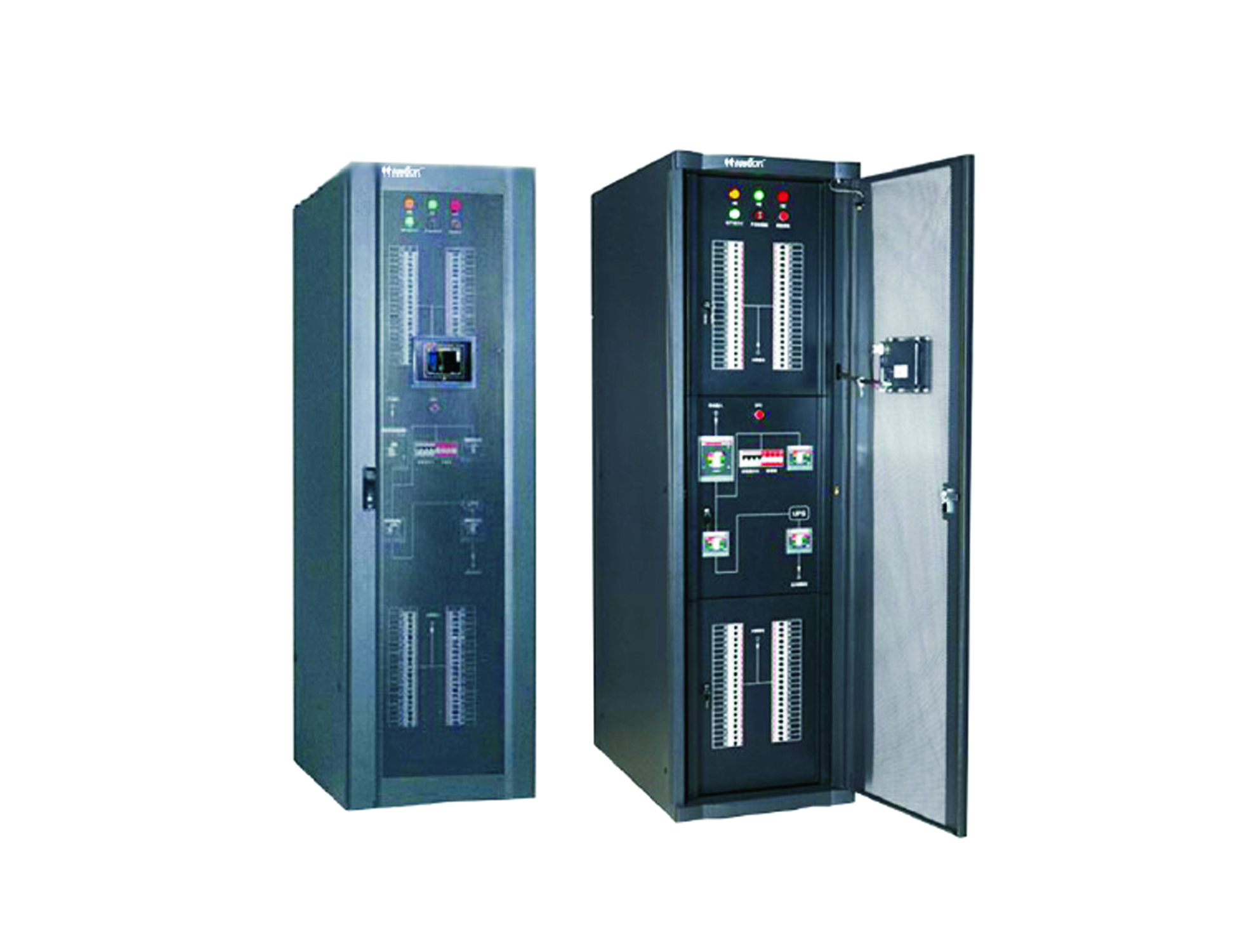

Intelligent column header cabinet is a distribution cabinet that comprehensively collects all energy data for the energy terminal of the data center computer room. It provides high-precision measurement data for the terminal energy monitoring system, reflects the power quality data in real time through the display unit and uploads it to the background dynamic environment control system through digital communication, so as to achieve effective management of the real-time monitoring and operation quality of the entire distribution system, help users optimize the network data center, strengthen energy consumption management, improve the server operation efficiency, and provide reliable guarantee for the all-round green data center.
Ratedpower | 60KW、100KW、160KW |
100A、160A、250A | |
Ratedvoltage | 380VAC/50Hz |
Power supply ? system | Three phase five ? wire (TN-S) |
Output branch | Up to 108 single ? routes, up to 54 dual routes |
Power display | A、B、C3 phase LED ? display |
Parameter ? display | 7-inch touch ? screen |
Main road parameters | Three-phase ? voltage, three-phase current, frequency, status, bus temperature ? (customized), harmonics, load percentage, electrical energy Active power, ? reactive power, apparent power, power factor |
Branch ? parameters | Phase voltage, ? phase current, load percentage, electrical energy, active power, power ? factor, frequency, state, temperature (customized) |
Bus alarm | Overvoltage, ? undervoltage, phase loss, loss, current exceeding high limit, current ? exceeding low limit, frequency fault, overtemperature |
Branch alarm | Overcurrent, ? instantaneous overcurrent, current exceeding high limit, current exceeding ? low limit, switch opening, switch closing |
Communication? interface | RJ45 |
withstanding ? voltage | 2000VAC/min |
Environmental ? conditions for use | Temperature ? range -5 ℃~+40 ℃, humidity range O%~90% (without ? condensation), Altitude less ? than 2000M (derating should be considered when altitude is 1000M) |
Executive ? standards | GB7251-1、GB7251-3 |
